With the rapid development of industrial automation, renewable energy, and communication infrastructure, cable manufacturers are facing increasing demands for higher production efficiency, stable cable quality, and flexible manufacturing capabilities.

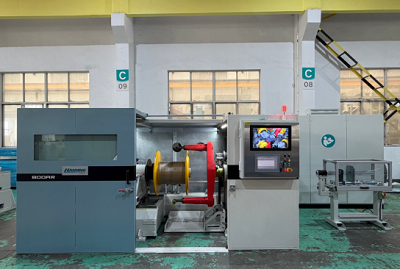

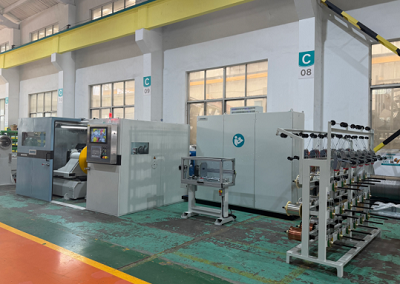

To meet these challenges, Jiangsu Handing Cable Equipment has developed the STE-800AR.SV Cantilever Single Twist Cabling Machine, an advanced cable manufacturing solution designed for high-speed production of multi-core cables, shielded cables, control cables, and other special cable applications.

Featuring a cantilever single-side support structure, intelligent PLC control system, precise tension management, and integrated taping capability, this high speed single twist cabling machine helps cable manufacturers improve productivity while reducing production costs.

What Is a Cantilever Single Twist Cabling Machine?

A Cantilever Single Twist Cabling Machine is a specialized cable manufacturing machine used to twist multiple insulated wires or cable cores together into a finished cable structure through a single twisting process.

Compared with traditional cabling equipment, a cantilever single twist cabling machine adopts a compact cantilever design, allowing easier bobbin replacement, lower maintenance requirements, and improved production flexibility.

This type of equipment is widely used for manufacturing:

• Control cables

• Instrumentation cables

• Communication cables

• Drag chain cables

• Shielded cables

• LSZH cables

• Power cables

The STE-800AR.SV developed by Jiangsu Handing Cable Equipment is designed specifically for manufacturers requiring high precision and stable production performance.

STE-800AR.SV Technical Specifications

The optimized design enables stable operation for continuous industrial cable production.

Key Advantages of STE-800AR.SV Single Twist Cabling Machine

1. Cantilever Structure for Faster Bobbin Replacement

One of the biggest advantages of the STE-800AR.SV is its cantilever single-side support structure.

Unlike traditional machines requiring complicated frame disassembly during reel replacement, this design allows operators to change bobbins more efficiently.

Benefits include:

• Reduced downtime

• Easier operation

• Lower labor requirements

• Improved production efficiency

For cable factories pursuing flexible manufacturing, this structure provides significant operational advantages.

2. Precise Tension Control Ensures Consistent Cable Quality

Cable quality depends heavily on stable tension control during the cabling process.

The STE-800AR.SV integrates a constant tension control system with optimized wire routing design to maintain uniform force distribution.

This helps prevent:

• Core wire deformation

• Uneven cable structure

• Loose twisting

• Inconsistent lay length

Even during machine startup, shutdown, or emergency stop, the system maintains stable cabling performance.

3. Integrated Cabling and Taping Process

For shielded cable production, the STE-800AR.SV supports integrated cabling and taping functions.

The machine can perform:

• Mylar tape wrapping

• Aluminum foil wrapping

• Concentric taping

By combining multiple processes into one production line, manufacturers can:

• Reduce intermediate processing

• Minimize cable surface damage

• Improve production efficiency

• Produce high-quality shielded cables

4. Intelligent PLC Control System Improves Manufacturing Management

Modern cable factories require intelligent production management.

The STE-800AR.SV is equipped with a PLC touchscreen control system that provides:

• One-click parameter adjustment

• Real-time speed monitoring

• Meter counting

• Fault alarm display

• Variable frequency speed regulation

• Overload protection

• Wire break protection

This intelligent control system helps manufacturers achieve more standardized and efficient production.

Applications of STE-800AR.SV Cable Manufacturing Equipment

Industrial Control Cable Production

Used for producing cables applied in:

• Automation equipment

• Industrial machinery

• Control systems

Communication Cable Manufacturing

Suitable for:

• Data transmission cables

• Signal cables

• Communication wiring systems

New Energy Cable Production

Supports manufacturing requirements for:

• Renewable energy systems

• Charging equipment

• High-performance electrical applications

Flexible Cable Manufacturing

Ideal for:

• Drag chain cables

• Robot cables

• High-flexibility cables

Why Choose Jiangsu Handing as a Single Twist Cabling Machine Manufacturer?

Jiangsu Handing Cable Equipment focuses on the research, development, and manufacturing of advanced cable production equipment.

With professional engineering capability and integrated manufacturing experience, Handing provides cable manufacturers with:

• High-performance cabling machines

• Customized production solutions

• Stable equipment quality

• Complete production line support

The STE-800AR.SV represents Handing's commitment to helping global cable manufacturers achieve intelligent and efficient production.

Frequently Asked Questions

1. What cables can be produced by the STE-800AR.SV Single Twist Cabling Machine?

The machine is designed for multi-core cables, including control cables, communication cables, instrumentation cables, drag chain cables, shielded cables, LSZH cables, and power cables.

2. What is the maximum speed of this cantilever single twist cabling machine?

The STE-800AR.SV supports a maximum cantilever speed of up to 800 rpm, enabling efficient high-speed cable production.

3. Does the machine support cable shielding processes?

Yes. The equipment supports synchronous concentric taping and wrapping functions, making it suitable for shielded cable manufacturing.

4. Why is the cantilever structure better than traditional designs?

The cantilever structure simplifies bobbin replacement, reduces maintenance time, saves labor costs, and improves production flexibility.

5. Is STE-800AR.SV suitable for small and medium cable manufacturers?

Yes. Its compact footprint and flexible production capability make it suitable for small and medium-sized cable factories upgrading existing production lines.

Conclusion

The STE-800AR.SV Cantilever Single Twist Cabling Machine provides cable manufacturers with an intelligent solution combining high-speed operation, precise tension control, flexible applications, and efficient maintenance.

For companies looking for a reliable single twist cabling machine manufacturer or advanced cable manufacturing equipment, Jiangsu Handing offers a professional solution designed for modern special cable production requirements.
