With the rapid development of renewable energy, smart grids, 5G communication networks, and industrial automation, the global demand for high-performance cables continues to increase. Cable manufacturers are facing higher requirements for production efficiency, cable quality consistency, and intelligent manufacturing capabilities.

Traditional cabling equipment often struggles with problems such as low production speed, unstable twisting accuracy, high labor costs, and frequent production adjustments when handling different cable specifications.

To address these challenges, Jiangsu Handing Cable Equipment has developed the STE-1250C Frame Type Single Twisting Machine, an advanced cable manufacturing solution integrating high-speed twisting, synchronous concentric taping, and intelligent control technology.

Designed for photovoltaic cables, multi-core control cables, communication cables, and LSZH special cables, the STE-1250C provides cable manufacturers with a flexible, efficient, and reliable production solution for modern cable factories.

Key Takeaways

• The STE-1250C is a high-performance Frame Type Single Twisting Machine designed for modern cable production.

• It integrates twisting, filling, and synchronous taping processes into one production system.

• The machine supports multiple cable applications including photovoltaic cables, communication cables, and industrial control cables.

• Intelligent PLC closed-loop control improves twisting accuracy and production stability.

• Flexible specification adjustment helps cable manufacturers reduce equipment investment and improve production efficiency.

•


What Is a Frame Type Single Twisting Machine?

A Frame Type Single Twisting Machine is a specialized cable manufacturing machine used for twisting multiple insulated wires or cable cores together to form a finished cable structure.

Compared with conventional twisting equipment, modern frame type single twisting machines focus on:

• Higher production speed

• More accurate twisting control

• Better cable roundness

• Lower material waste

• Easier specification switching

The equipment is widely used in industries requiring high-quality cables, including:

• Solar photovoltaic systems

• Energy storage projects

• Power transmission networks

• Industrial automation

• Communication infrastructure

For cable manufacturers, selecting a reliable single twisting machine directly affects production capacity, cable quality, and long-term operating costs.

Why Did Handing Develop the STE-1250C Single Twisting Machine?

The cable industry is moving from traditional manufacturing toward intelligent and flexible production. Many cable factories are facing several challenges:

1. Increasing Demand for High-Performance Cables

The rapid expansion of photovoltaic power generation, energy storage systems, and electric infrastructure requires cables with:

• Higher electrical safety

• Better mechanical performance

• Stable insulation protection

• Consistent production quality

This requires cable production equipment with higher precision and automation.

2. Problems with Traditional Cabling Equipment

Traditional cable twisting solutions may cause:

• Uneven twisting pitch

• Cable core displacement

• Insulation surface damage

• High production waste

• Long changeover time

These problems increase manufacturing costs and reduce competitiveness.

The STE-1250C was designed to solve these production limitations through integrated intelligent technology.

Main Technical Features of STE-1250C Frame Type Single Twisting Machine

1. Integrated Twisting and Synchronous Taping System

One of the biggest advantages of STE-1250C is its integrated production structure.

Unlike traditional production methods requiring separate twisting and taping processes, this machine combines:

• Cable twisting

• Core arrangement

• Filling

• Concentric taping

into a single continuous process.

Benefits include:

• Reduced intermediate handling

• Lower cable surface damage risk

• Improved production consistency

• Higher manufacturing efficiency

The synchronous taping system automatically matches tape tension with production speed, preventing problems such as:

• Tape deviation

• Wrinkle formation

• Uneven wrapping

This makes it suitable for high-quality photovoltaic and communication cable production.

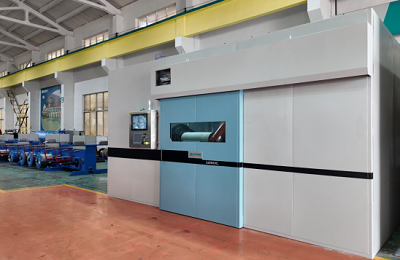

2. High-Speed Stable Frame Structure

The STE-1250C adopts a high-strength integrated frame structure with optimized dynamic balance design.

During high-speed operation, the machine maintains:

• Low vibration

• Stable wire movement

• Reduced mechanical noise

• Longer service life

The open frame design also improves daily operation efficiency by making:

• Wire threading easier

• Bobbin replacement faster

• Maintenance more convenient

Compared with traditional closed-frame equipment, production changeover time can be significantly reduced.

3. Flexible Production for Multiple Cable Types

A major advantage of this automatic cable twisting machine is its wide application range.

The STE-1250C supports:

• Wire diameter range: 1.0mm–5.0mm

• Maximum finished cable diameter: Φ20mm

One machine can manufacture different cable products, including:

This flexibility allows manufacturers to reduce equipment investment while increasing production capability.

4. Intelligent Closed-Loop Control System

Modern cable factories require digital production management.

The STE-1250C features an intelligent control system that enables:

• Real-time operation monitoring

• Accurate twisting parameter adjustment

• Automatic production control

• Stable product quality

The touch-screen interface allows operators to adjust:

• Twisting pitch

• Twist direction

• Production parameters

The twisting pitch adjustment range reaches: 30mm–350mm with stepless adjustment while maintaining ±0.5% twisting accuracy.

Technical Parameters of STE-1250C

Applications of STE-1250C Cable Twisting Machine

Photovoltaic Cable Production

The expansion of global solar energy projects has increased demand for reliable photovoltaic cables.

The STE-1250C helps manufacturers produce cables with:

• Stable structure

• High dimensional accuracy

• Reliable insulation protection

Energy Storage Cable Manufacturing

Energy storage systems require cables capable of handling high current and long-term operation.

The machine supports efficient production of specialized energy storage cables.

Communication Cable Production

With the growth of 5G networks and digital infrastructure, communication cables require:

• Precise core arrangement

• Excellent shielding performance

• Stable electrical characteristics

The integrated twisting and taping process improves production reliability.

Why Choose Handing as Your Single Twisting Machine Manufacturer?

Jiangsu Handing Cable Equipment focuses on providing professional cable manufacturing equipment solutions.

The company combines:

• Advanced mechanical design

• Intelligent automation technology

• Cable production experience

• Customized equipment solutions

For global cable manufacturers, Handing provides not only individual machines but also complete production solutions according to different cable applications.

The STE-1250C can be integrated with other cable production equipment to build efficient cable manufacturing lines.

Future Trends of Cable Twisting Machine Development

The future cable manufacturing industry will focus on:

• Intelligent Manufacturing: AI-based monitoring, automation control, and digital factory management will become standard requirements.

• Flexible Production: Cable manufacturers need equipment capable of handling customized orders and multiple specifications.

• Energy Efficiency: Low-energy, high-output machines will help manufacturers reduce operational costs.

The STE-1250C represents this development direction by combining automation, flexibility, and high production efficiency.

FAQ About Frame Type Single Twisting Machine

1. What is the main function of a single twisting machine?

A single twisting machine combines multiple cable cores or wires into a structured cable through controlled twisting processes, improving cable strength and stability.

2. What cables can the STE-1250C produce?

The STE-1250C is suitable for photovoltaic cables, control cables, communication cables, LSZH cables, and other multi-core cable applications.

3. What is the advantage of synchronous taping?

Synchronous taping reduces production steps, improves cable consistency, and prevents problems caused by secondary processing.

4. How fast can the STE-1250C operate?

The maximum production speed of the STE-1250C can reach 150m/min, depending on cable specifications and production requirements.

5. Why should cable manufacturers choose an intelligent twisting machine?

An intelligent twisting machine improves production accuracy, reduces labor requirements, lowers material waste, and helps manufacturers meet increasingly strict cable quality standards.

Conclusion

As global demand for photovoltaic, energy storage, communication, and industrial cables continues to grow, cable manufacturers need more intelligent and efficient production equipment.

The STE-1250C Frame Type Single Twisting Machine provides a comprehensive solution by combining high-speed twisting, synchronous taping, flexible production capability, and intelligent control.

For cable manufacturers seeking to upgrade production lines, improve efficiency, and enhance market competitiveness, the STE-1250C is an advanced choice for next-generation cable manufacturing.
