Introduction

In modern wire and cable manufacturing, the extrusion machine for copper wire stands as one of the most critical pieces of production equipment. Whether you produce power cables, building wires, electronic wires, automotive cables, or industrial control lines, a stable and high-precision extrusion machine for copper wire directly determines insulation quality, production efficiency, product consistency, and long-term operational costs.

If you are a factory manager, engineering director, procurement specialist, or technical supervisor researching or planning to purchase an extrusion machine for copper wire, this complete guide is written for you. We explain clearly what an extrusion machine for copper wire is, how it works, its core components, major advantages, ideal applications, key specifications, selection criteria, operation tips, maintenance methods, and common troubleshooting solutions. We keep professional content easy to understand, avoid overly complex jargon, and provide practical, actionable advice to help you make fully informed decisions.

At Jiangsu Handing Cable Machinery Co., Ltd., we specialize in designing and manufacturing high-performance extrusion machine for copper wire and complete extrusion lines for big-size cables. With years of R&D and production experience, we provide reliable, energy-saving, and easy-to-operate extrusion solutions supported by full technical training, after-sales service, and fast global delivery.

1. What Is an Extrusion Machine for Copper Wire?

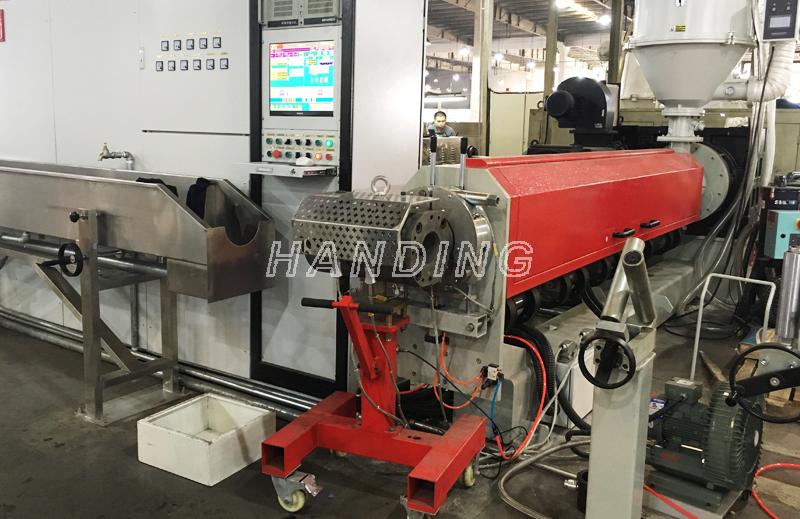

An extrusion machine for copper wire (also commonly called a copper wire extruder, wire coating extruder, or cable insulation extruder) is a specialized piece of thermoplastic extrusion equipment used to continuously and uniformly apply insulation or sheath layers onto bare copper conductors.

Its core function is to melt and plasticize thermoplastic materials — such as PVC, PE, PP, LSZH, and XLPE — then extrude them evenly around a moving copper wire core through a precision crosshead die system. The coated wire then enters a cooling system to solidify, forming a finished insulated copper wire with stable dimensions, smooth surface, concentric layers, and reliable electrical performance.

Unlike general-purpose plastic extruders, an extrusion machine for copper wire features a specialized wire-passing crosshead design, precise temperature control, stable screw plasticizing system, synchronized traction control, and online diameter monitoring to ensure the insulation layer adheres firmly and uniformly without bubbles, scratches, eccentricity, or breakage.

In short, the extrusion machine for copper wire is the “core heart” of copper wire insulation and sheathing production.

2. How Does an Extrusion Machine for Copper Wire Work?

The working process of an extrusion machine for copper wire follows a continuous, automated, and highly stable production flow:

Step 1: Wire Pay-Off & Preheating

Bare copper wire is fed steadily from the pay-off stand with controlled tension to avoid shaking or stretching. A preheating device removes surface moisture and oxides, improving the bonding strength between the copper conductor and the insulation layer.

Step 2: Material Feeding & Plasticizing

Thermoplastic pellets enter the extruder barrel from the hopper. The rotating screw pushes the material forward while multi-zone heating bands and shear heat melt and homogenize the plastic into a uniform melt with stable fluidity.

Step 3: Crosshead Extrusion Coating

The molten plastic flows into the precision crosshead die. The copper wire passes through the center of the die, and the melt wraps around it concentrically under stable pressure, forming a smooth and even insulation or sheath layer.

Step 4: Cooling & Setting

The newly coated wire passes through a water cooling tank or air cooling system to rapidly solidify the insulation layer, maintaining size stability and surface smoothness.

Step 5: Traction & Diameter Control

A caterpillar haul-off unit pulls the wire at a constant, synchronized speed matched with the extruder output to ensure consistent coating thickness. Online diameter measurement instruments monitor dimensions in real time for automatic adjustment.

Step 6: Take-Up & Winding

The finished insulated copper wire is neatly wound onto spools ready for inspection, packaging, and delivery.

This complete process ensures the extrusion machine for copper wire produces high-quality, consistent products around the clock.

3. Core Components of a High-Performance Extrusion Machine for Copper Wire

A reliable extrusion machine for copper wire consists of eight key precision components:

• High-Precision Screw & Barrel System

• Multi-Zone Accurate Temperature Control System

• Specialized Crosshead Die Assembly

• Stable Pay-Off & Preheating System

• Synchronized Caterpillar Haul-Off System

• Cooling System

• Intelligent Electrical Control System

• Online Diameter Measurement & Quality Control

Each component directly affects the performance and stability of the extrusion machine for copper wire.

4. Key Advantages of Using a Professional Extrusion Machine for Copper Wire

4.1 Excellent Insulation Quality & High Concentricity

The precision crosshead and stable extrusion system ensure the insulation layer is highly concentric, avoiding thin spots or eccentricity. This greatly improves electrical safety, voltage resistance, and service life of copper wires.

4.2 High Production Efficiency & Low Failure Rate

Continuous automatic production, stable speed, low downtime, and high output reduce labor costs and increase workshop productivity.

4.3 Wide Material Compatibility

A professional extrusion machine for copper wire can stably process PVC, PE, PP, LSZH, XLPE, and other thermoplastic insulation materials, supporting diversified production needs.

4.4 High Precision & Strong Stability

Advanced temperature control and synchronized traction systems ensure consistent product dimensions, stable performance, and minimal waste rates.

4.5 Easy Operation & Low Maintenance

User-friendly intelligent control panels reduce the skill requirements for operators. Robust construction and wear-resistant parts lower daily maintenance costs.

4.6 Energy-Saving & Environmentally Friendly

High-efficiency heating systems, low-energy motors, and closed-loop temperature control reduce power consumption compared with ordinary equipment.

4.7 Strong Adaptability for Multiple Wire Specifications

By changing dies and adjusting parameters, one machine can produce many types of copper wires with different diameters and insulation thicknesses, improving equipment utilization.

5. Typical Applications of Extrusion Machine for Copper Wire

The extrusion machine for copper wire is used in almost all fields that require insulated copper conductors, including power cables, building wires, electronic and appliance wires, automotive wires, industrial control cables, communication cables, and special high-performance cables.

No matter what type of insulated copper wire you produce, a professional extrusion machine for copper wire will be your core production equipment.

6. Main Technical Specifications of Extrusion Machine for Copper Wire

When selecting an extrusion machine for copper wire, you must focus on these core specifications: screw diameter, L/D ratio, production capacity, applicable conductor diameter, finished cable outer diameter, line speed, motor power, temperature control accuracy, and power supply standard.

At Jiangsu Handing Cable Machinery, we provide a full series of models to match small, medium, and large copper wire production requirements.

7. How to Choose the Right Extrusion Machine for Copper Wire

Follow these practical steps to select the best machine for your factory: confirm your product range, calculate required output, determine precision requirements, check workshop conditions, set a reasonable budget, choose a reliable manufacturer, and test machine performance before purchase.

By following these steps, you can choose the most suitable extrusion machine for copper wire and avoid costly mistakes.

8. Operation & Maintenance Tips

Safe operation and regular maintenance are essential to extend the service life of your extrusion machine for copper wire and maintain stable product quality. Follow official training, monitor working conditions, clean components regularly, lubricate moving parts, and calibrate instruments to keep the machine in top condition.

9. Common Faults & Troubleshooting

Common issues include insulation eccentricity, bubbles, rough surface, poor adhesion, and temperature fluctuation. Most faults can be solved by adjusting the crosshead, drying raw materials, optimizing temperature, cleaning dies, preheating the conductor, or replacing damaged parts.

10. Why Choose Jiangsu Handing Extrusion Machine for Copper Wire?

As a professional manufacturer, Jiangsu Handing Cable Machinery Co., Ltd. provides globally competitive extrusion machine for copper wire solutions with mature technology, strict quality control, a full model range, intelligent control systems, full technical support, short delivery times, and global market recognition.

If you need a reliable, high-performance extrusion machine for copper wire, Handing Machinery is your trusted long-term partner.

Conclusion

The extrusion machine for copper wire is the core foundation of high-quality insulated copper wire production. It determines product quality, production efficiency, and market competitiveness. Choosing a professional, stable, and energy-saving extrusion machine for copper wire means lower costs, higher yields, and stronger business growth.

At Jiangsu Handing Cable Machinery Co., Ltd., we are committed to providing safe, reliable, efficient, and cost-effective extrusion machine for copper wire and complete extrusion line solutions. We look forward to cooperating with you and supporting your success.
